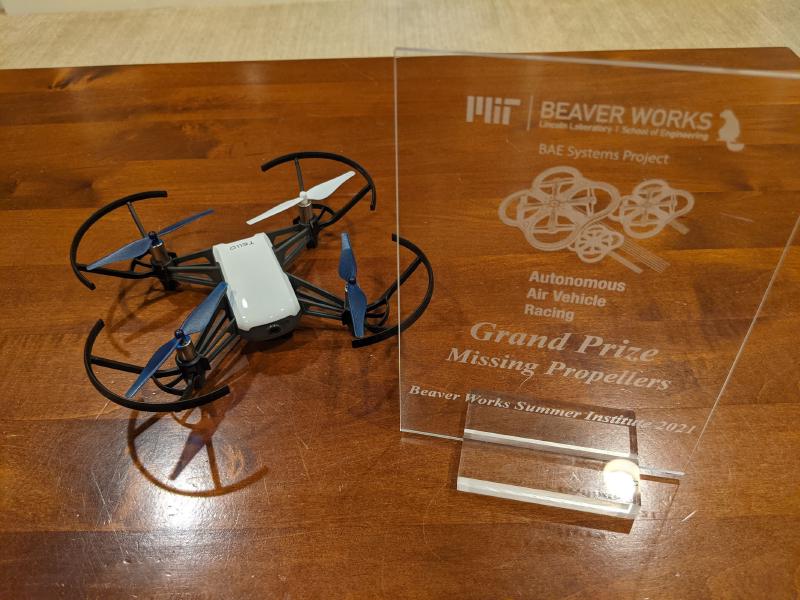

Missing Propellers

Introduction
#

As our MIT BeaverWorks Summer Insitute final project in 2021, Nandini Bezwada, Michelle Wang, and I programmed drones to fly through colored hoops autonomously. Our project won the best final project award.

OpenCV + PID
#

We used OpenCV’s solvePnP function to project 2D pixels into 3 dimensions. The drone positions itself using four PID controllers for x, y, z, and yaw.

3rd Persion View

Debugger
#

The drone records footage of its flights so that we can replay what it saw before crashes.

Corner
The drone also records footage with a debugger overlay which displays the color filter, ellipse fitting, solvePnP axes, and variables. The debugger helped us determine the root cause of every crash.
Debugger
Overlay

Video
#

For more details, see our presentation video:
